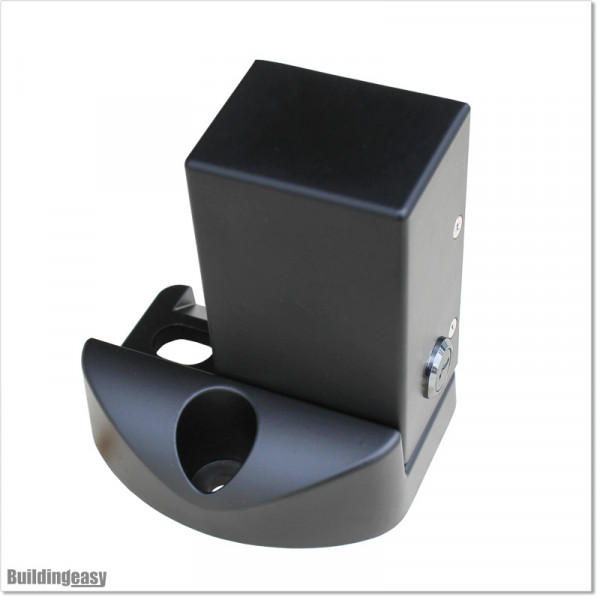

Electric Gate Floor Lock (GLE3)

Power supply to the lock should not exceed 5 seconds. The lock tongue should be free to move when the power is on. This gate lock works with our SWD1, SWS1L, SWD2, SWS2L, SWD3, SWD5 and SWD6 double swing gate openers and single gate openers. The lock has a manual bypass with a key in case of a power failure.

The lock is controlled from the gate opener's control board. Before the gate is opened by the automatic gate opener, the electric lock receives a signal to unlock. The unlock signal remains on for a very short time and then switches off automatically. Then, the gate opener opens the gate.

For double swing gates, this lock is installed on the gate that opens first. It is important to set up this feature in your gate opener for the proper operation of this lock. Please specify the key direction. We stock only inward-opening gate locks.

Specifications:

• Operating Voltage: DC24V
• Operating Current: 2.5A
• Rated operating duration: 3 seconds
• Operating Method: Pulse input to open and Manual Release
• Material: Die Cast Alloy
• Dimensions: 60 X 70 X 118mm
• Drop Bolt Pin: 16mm Diameter

Optional Mounting Plate is available for Aluminium Gates

Watch Assembly Video here
