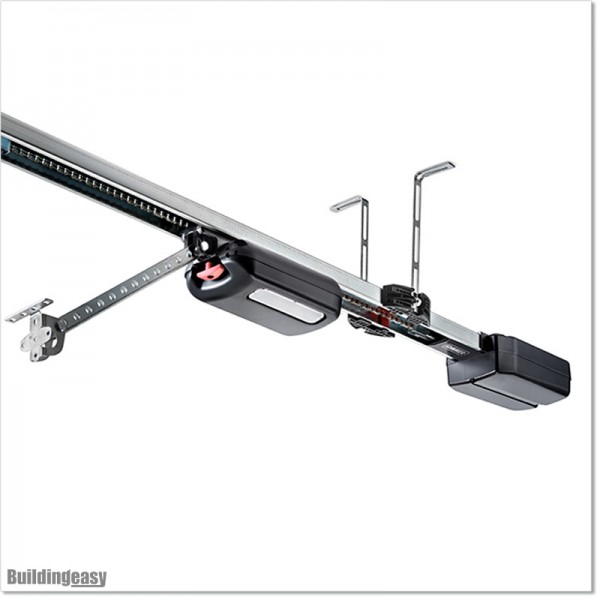

Sommer Base+ Garage Opener S9110 (8500V)

The SOMMER S9110 Base Plus features most advanced garage door control unit with various optimized speed profiles and the option for precision setting of the operating forces. The system continuously learns automatically and adjusts the door operation accordingly.

All our new S9110 Base Plus remote controls work on 868.95MHz frequency.

Universal operator for sectional doors, overhead doors, one piece doors, up-and-over doors and side-opening sectional doors.

• The low-wear, robust and standard-compliant technology with its powerful, travelling motor ensures reliable operation and functionality for many years, with extremely low energy consumption.
• This gentle transmission technology ensures a long service life and less wear and tear of the garage door operator. The operator is completely maintenance-free.
• Intelligent, responsive control technology increases the service life of your door.
• Unique obstacle detection: Damage is avoided, e.g. due to freezing conditions.
• Secure door closing: Uneven ground conditions are compensated for thanks to the optimum closing pressure. Pests and leaves are kept outside.
• Optimized for break-in protection: The operator detects attempted break-ins and generates active counter-pressure through motor with high self-locking.
• Partial opening: To move the door to a ventilation position via a radio command, or automatically as an option via the Senso humidity sensor.
• Power-saving LED lighting in travelling motor carriage for better lighting of the garage and any potential hazard areas.
• Integrated emergency release for manual interior operation of the door in the event of a power failure.

Specifications:

• Travel length max. – 2.75M
• Travel length including optional extension max. – 8 M
• Speed – 180 mm/sec
• Max. pulling and pushing force – 1100 N
• Door weight max. – 200 Kg

Following Items come with the Kit:

• Garage Door Operator
• 2 X Remote Controls (Bi Directional)
• Wireless Push Button Switch

The warranty covers manufacturing defects for a period of 2 years from the date of purchase. Please note that the warranty is back to base, meaning that customers may need to return the product to Buildingeasy Ltd. for repairs or replacements.

Additional Details of Base+

Watch Installation Video
