Centurion D5 - 50W Solar Opener (SO71-SOLAR)

Use this system for sliding gates up to 8M and 150Kg weight travelling on level ground. Average open / close cycles 25 in sunny days. This is just a guide only but can vary with other factors. Kit comes with 12V solar system. Maximum gate speed is whopping 22 meters per minute.

Sleek, strong, stylish, and even eco-conscious. Adaptive collision sensing. This gate motor has it all. Two years back to base manufacture’s defect warranty to provide you with the perfect domestic / lite industrial sliding gate solution.

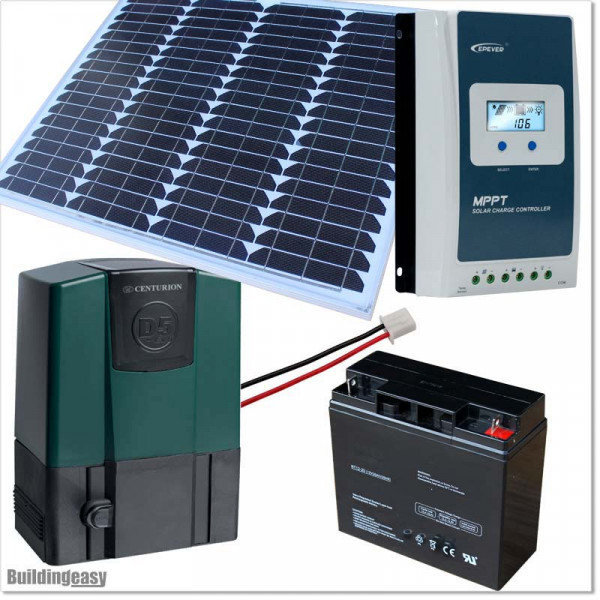

Kit comes with:

• Centurion D5 Evo Opener
• Monocrystalline Solar Panel 50W / 12V (670 X 550 X 25)
• 10A Tracer1206AN Solar Controller (172 X 139 X 44)
• Leoch Valve Regulated AGM Battery 12V / 20AHr (182 X 77 X 168)
• Two remote controls (Nova 4 buttons)
• Gate Opener Accessories Kit
• Battery Charge Feedback Connector

Technical specifications:

• Current Consumption (motor at rated load): 10A
• Operator Push Force – Starting: 30kgf
• Operator Push Force – Rated: 17kgf
• Gate Speed (Varies with Load): 18-22m/min
• (Gate operating speed can be configured to run slower depending on the requirements of individual installations)
• Manual Override- Lockable with Key Release
• Operating Temperature Range: -15°C to +50°C
• Receiver Code Storage Capacity: 500 Transmitter Buttons
• Receiver Frequency: 433.92MHz
• Degree of Protection: IP55

Battery Maintenance Tips

• Recharge before use
• Recharge every 3 month when not in use
• Do not store flat
• Do not discharge below 11V
• Length of service life will be directly affected by the number of discharge cycles, depth of discharge, ambient temperature and charging voltage

Customers are advised to contact Buildingeasy Ltd. for any technical help, repairs, or parts related to the Gate Opener. The warranty covers manufacturing defects for a period of 2 years from the date of purchase, and any issues should be reported to Buildingeasy Ltd. for assistance. Please note that the warranty is back to base, meaning that customers may need to return the product to Buildingeasy Ltd. for repairs or replacements.
