Solar Gate Opener 100W (SWD23H-SOLAR)

• 100W Solar operated double swing gate opener for medium duty applications
• Auto Close function with 0-99 second delay adjustment
• Single or Double swing gate selectable
• Max can up to 50 sets of remote controllers
• Interface for optional flashing light 24V DC
• Interface for optional gate lock, photocell, keypad, push button, intercom with gate open facility etc.

Electrical

• Solar Supply Voltage DC 24V
• Operating Voltage DC 24V
• Safety detection Over current detection
• IP Rating IP66

Mechanical

• Maximum Piston Stroke 330mm
• Maximum length of the motor (Arm) 1036mm
• Maximum weight per leaf 35Kg
• Suitable gate (per leaf) width 1.2M – 2M
• Actuator Arm Stainless Steel
• Maximum opening angle 100 degree
• Gate open / close duration 8-12 seconds

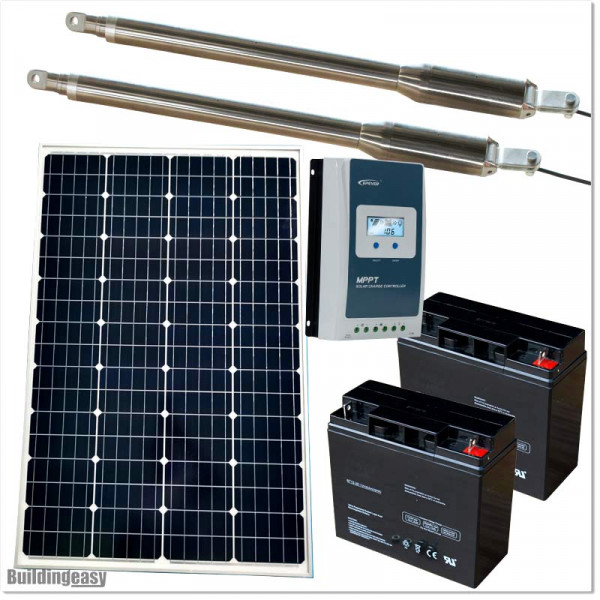

Complete Kit comes with followings

• Automatic Double Gate Opener
• Monocrystalline Solar Panel 100W / 24V (950 X 670 X 30mm)
• 2 X Valve Regulated Gel Battery 20Hr / 12V (170 X 75 X 165mm)
• 20A EPEVER Tracer2210AN Solar Controller (220 X 154 X 52)
• 3 X Remote Controls

Battery Maintenance Tips

• Recharge before use
• Recharge every 3 month when not in use
• Do not store flat
• Do not discharge below 11V
• Length of service life will be directly affected by the number of discharge cycles, depth of discharge, ambient temperature and charging voltage

The warranty covers manufacturing defects for a period of 1 years from the date of purchase. Please note that the warranty is back to base, meaning that customers may need to return the product to Buildingeasy Ltd. for repairs or replacements.

Watch the Gate Opener Installation Video here
