To switch high voltage/current device from a low voltage/current trigger
Relay Modules

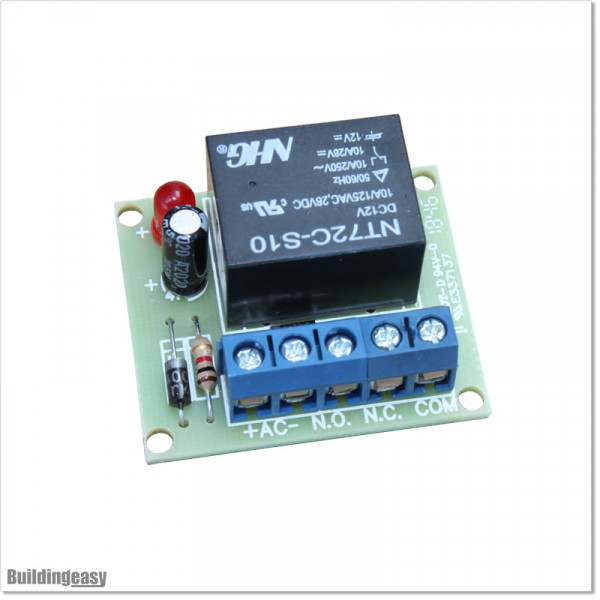

Relay 12V AC / DC (RELAY11)

$20.00
Tax included

To switch high voltage/current device from a low voltage/current trigger

Quantity
Add to Wishlist
Add to Compare

Guarantee Safe & Secure Checkout
Product payments

Specifications

  • 12V DC or 16V AC operation.
  • Normally open and closed potential free relay contacts.
  • Low current 20mA when energized.
  • Switching current rating 10A@ 12v DC.
  • LED indication.
  • Reverse polarity protection.
  • Back EMF protection.
  • Physical size: 34mm x 29mm

Wiring Diagram

  • Common relay contact
  • N.C. relay contact
  • N.O. relay contact
  • -12v DC or 16v AC
  • +12v DC or 16v AC

RELAY11
