Low-voltage direct burial underground pure copper cable 6.0mm (10AWG). Use for Automatic Gate Openers, Landscape Lighting and Security Lighting applications not exceeding 50 Volts.

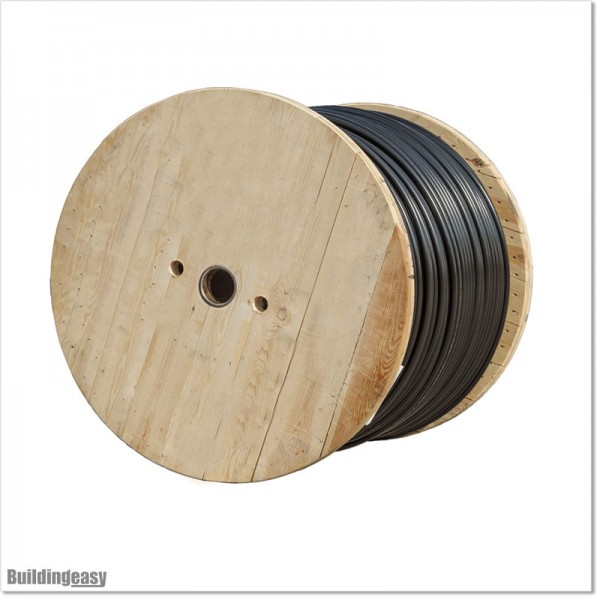

Low Volt Power Cable 6mm (100M)
$590.00
Tax included
Low-voltage direct burial underground pure copper cable 6.0mm (10AWG). Use for Automatic Gate Openers, Landscape Lighting and Security Lighting applications not exceeding 50 Volts.
Guarantee Safe & Secure Checkout
Low-voltage underground pure copper cable 6.0mm (10AWG). Use for Automatic Gate Openers, Landscape Lighting and Security Lighting applications not exceeding 50 Volts. Direct burial and sunlight resistant cable has black PVC insulation jacket. Cable length is 100M.
Manufactured with two bare annealed flexible stranded copper conductors and premium-grade PVC insulation/jacket material. Conductors are duplexed in a flat construction to promote easy tear down during installation.
- AWG 10 (6.0mm) Copper Conductors
- Resistance of conductors Maximum 3.5 Ω/Km (at 20 Deg C)
- Rated 50 Volts (Do not exceed 50V)
- Operating Temperature -20°C to 60°C
- Outdoor Use (Sunlight Resistant)
- Suitable for Direct Burial
- 108 X 0.245mm Stranded Copper Conductors
- Black PVC Insulation Jacket 0.76/0.33mm thick
- Cable outer cross section is 5 X 9.7mm
SPECIFICATIONS:
- UL 1493
- CSA
- Requirements of the NEC
- RoHS Compliant
CABDB10
