Centurion D5/D6 Smart 100W Solar Opener (SO81-SOLAR)

Pushing the limits of technology and the various safety factors around speed, the D5 SMΔRT can reach an impressive top speed of up to 36 meters per minute. Average open / close cycles 30 in sunny days. This is just a guide only but can vary with other factors. Kit comes with 24V solar system.

Make sure to select “Third Party Solar Charger” from Set up Wizard. D5 Smart Gate Opener can use specific Smart Wireless Photocell(fully wireless). Gate can be operated wirelessly with smart phone if use our optional Wifi or Bluetooth control unit.

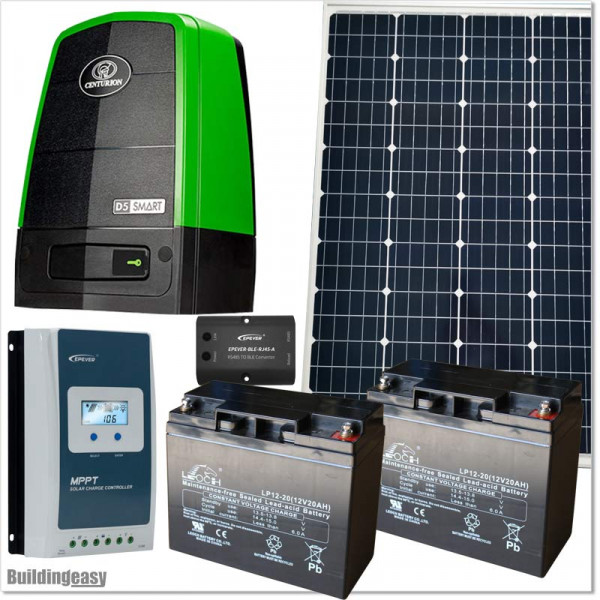

Kit comes with:

• D5/D6 Smart Gate Opener
• 100W / 24V Monocrystalline solar panel (925 X 670 X 30)
• Two Leoch VRLA AGM Batteries 12V / 20AHr (182 X 77 X 168)
• EPEVER TRACER 2210AN Solar Controller (220×154×52)
• Two remote controls (Nova 4 buttons)
• Base Plate
• Gate Opener Accessories Kit

Technical specifications:

• Current Consumption (motor at rated load): 13A
• Operator Push Force – Starting: 30kgf
• Operator Push Force – Rated: 17kgf
• Gate Speed (Varies with Load): 36m/min max
• Manual Override- Lockable with Key Release
• Operating Temperature Range: -15°C to +50°C
• Receiver Code Storage Capacity: 500 Transmitter Buttons
• Receiver Frequency: 433.92MHz
• Degree of Protection: IP54

Battery Maintenance Tips

• Recharge before use
• Recharge every 3 month when not in use
• Do not store flat
• Do not discharge below 11V
• Length of service life will be directly affected by the number of discharge cycles, depth of discharge, ambient temperature and charging voltage

Customers are advised to contact Buildingeasy Ltd. for any technical help, repairs, or parts related to the Gate Opener. The warranty covers manufacturing defects for a period of 2 years from the date of purchase, and any issues should be reported to Buildingeasy Ltd. for assistance. Please note that the warranty is back to base, meaning that customers may need to return the product to Buildingeasy Ltd. for repairs or replacements.
