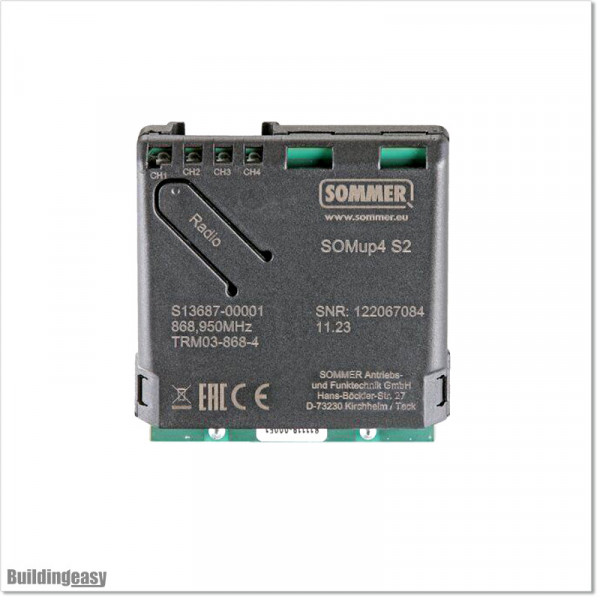

Sommer Radio receiver module 4-channel radio receiver module SOMup4 S2 working on MHz 868.95 Frequency.
Receiver SOMup4 S2 (S13687-00001)
$100.00
Tax included
Sommer Radio receiver module 4-channel radio receiver module SOMup4 S2 working on MHz 868.95 Frequency.
Guarantee Safe & Secure Checkout
- Optional feedback via transmitter when the sent command has been processed by the receiver
- Further advantages of SOMloq2: Hop function
- Integrated antenna: optional external antenna (# 7004) can be connected
- Memory: 40 radio commands can be programmed
- Slot for Memo memory extension (450 radio commands)
- Power supply: DC 5 V or DC 8–18 V
- Connection: 20-pin contact strip
- Temperature range: −25 °C to +65 °C
- Dimensions: 60 × 57 × 13 mm
Operating Mode:
- Impulse mode (jog): Relay activated as long as radio signal is present
- Defined ON/OFF: command for defined switch-on and command for defined switch-off
S13687-00001
