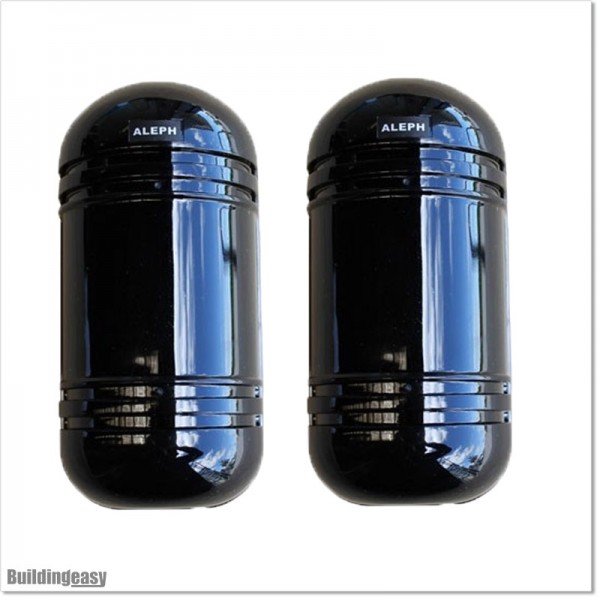

Photocell (P-CELL3)

This is an active infrared laser beam detector with artificial intelligent recognition and full function of self diagnose. Sensing distance outdoor is up to 100M and indoor up to 300M. Beam spread diameter is 2.1M for 100M distance.

Beam can be adjusted horizontal and vertical. This has in built temper switch terminals. Response time can be adjusted. Overall dimensions are 160mm X 80mm X 80mm.

Features:

Wired and BUS system compatible, holographic spot real-time report.
Using the solid power charger of no longevity ending, low voltage and mini power consumption.
Adopts DSP chip, patented multi-dimensional mistake-corrective code, and true detection alarm technology.
The digital ambiguous artificial intelligent recognition four band frequencies and use the artificial intelligent ambiguous judgment reduce the false alarm rate to zero.
Intelligent power emission. Adjustment the emission power of the beams automatically, it prolong the tubes longevity and reduce the power consumption.
Two sets of independence precession mini adjustment inner build optical aiming lens.
Full function of self diagnose, environment self adjustment, troubles locked.
Patent equivalent checking, special digital filter wave, its anti-interference of light arrive at IP85.
The upper and nether optical lens adjusts at the same time, enable the adjustment quicker and more exact.

Technical Parameter:

Operating distance: 100M

Number of beams: 2 beams active infrared detector

Response time: 50-700ms

Alarm output: NC & NO contacts rating DC30V / 0.5A

Alarm output-BUS: MA BUS constant rating DC30V / 0.5A

Operating current: 50mA

Operating voltage: DC 13.8-24V AC 11-18V

Sleeping mode current: 35mA

Temperature: -25 to +55 centigrade

Humidity: 5%-95% (RH)

BUS output: RS-485

Tamper output: NC contact rating DC 24V/0.5mA

Horizontal adjustment: 180° (±90°)

Vertical adjustment: ±10°
