EMX Exit Wand (VMD202-30M)

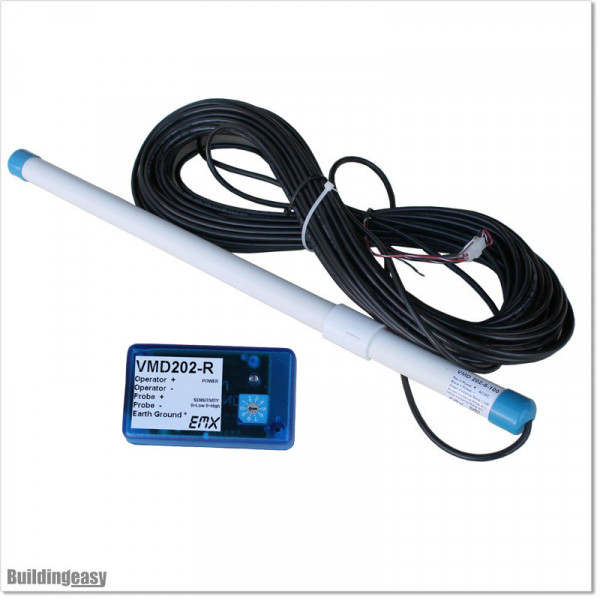

EMX VMD202-30M SINGLE PIECE VEHICLE MOTION DETECTOR. VMD202-30M is Made in USA. This unit comes with 30M long 5 core direct burial cable. Sensitivity of the Wand can be adjusted with VMD202-R Remote Controller and comes with VMD202-30M. Use Ground Earth Spike with the wand.

• Sensing probe is buried to protect against vandalism
• Wide range of power supply options
• Easy installation
• Low current consumption, ideal for solar applications
• Easy to integrate with security control boards, gate and door operators
• Direct burial cable

 VMD202 Install at least:

•  6-10 feet away from buried power, telephone, or invisible dog fence
• 10 feet away from natural gas lines
• 20 feet away from power pole with a transformer
• 100 feet back from railroad traffic
• 200 feet away from high power substation power lines
• 30 feet back from gate operator

Specifications:

• Range Sensitivity: 12ft @ 5mph minimum speed (depends on mass & speed)
• Output Time: 5 seconds
• Surge Protection: Probe input circuitry protected by surge suppressors
• Relay Output Configuration: Form C (SPDT)
• Relay Contact Rating: 1A @24VDC, 0.5A @230VAC
• Power Input: 9-41VDC or 6-29VAC
• Standby Current: 0.25mA
• Detection Current: 12mA
• Operating Temperature: -40C to 82C (0-95% relative humidity)
• Probe Housing Material: PVC water-tight
• Probe Dimensions: 24”L X 1”Dia
