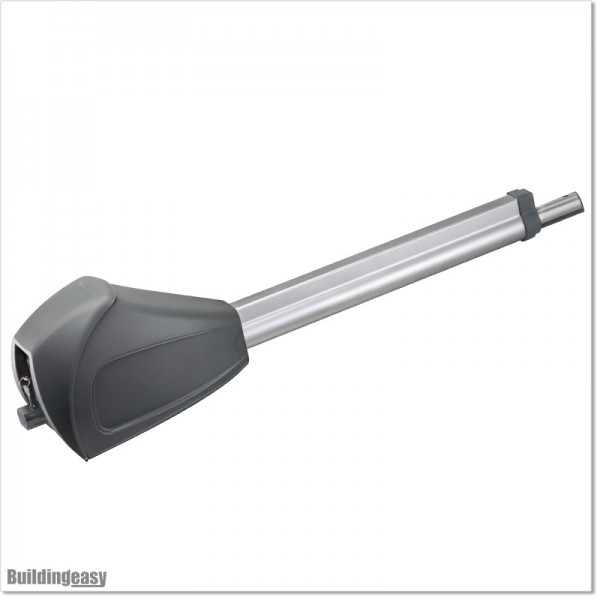

Sommer Twist XL (SWS8)

Features

• Microprocessor control board with a range of setting options, such as Pedestrian door function, Automatic closing of gate.
• Gate can be set to open outwards
• Adjustable speed and early warning time
• Adjustable functions when obstacle is encountered while door is closing (either total or partial gate reversal)
• Interface for TorMinal programming device
• Self-locking without any electrical lock (up to 3.5 m)
• Accident prevention with continuous electronically controlled force measurement (“DPS – Dynamic Power System”)
• Operator can be engaged and disengaged in any position (e.g. in case of power failure)
• Connections for safety facilities such as warning light and 2 or 4 wire light barrier (photo cell)
• Auxiliary DC 24 V) floating relay output
• Patented SOMMER gear saving brake system, even with heavy forces such as caused by wind load or vandalism
• Regulated soft run without power loss and smooth operation

 Specifications

• Maximum weight per leaf: 500Kg
• Maximum width: 5M
• Travel length: 450 mm
• Power supply: AC 220 - 240 V
• Motor voltage: DC 24 V
• Nominal frequency: 50/60 Hz
• Temperature range: –30°C / +70°C
• Protection class for Motor Arms IP 44
• Control unit IP 65

Kit comes with followings

• Motor Arms - 1
• Remote controls - 2
• Control box
• Unlock Keys - 2
• Mounting Accessories

The warranty covers manufacturing defects for a period of 2 years from the date of purchase. Please note that the warranty is back to base, meaning that customers may need to return the product to Buildingeasy Ltd. for repairs or replacements.
